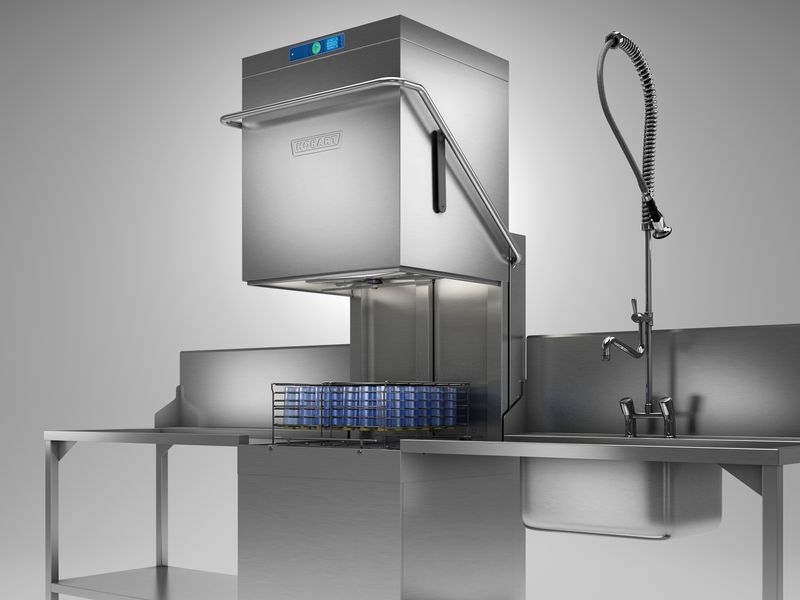

Dispatched by Supplier- Hood-type dishwasher for straight through or corner operation
- Nominal capacity up to 70 racks/h or 1,680 plates/h (with optional P-XL rack) or 2,520 glasses/h, 560 sheets/h, 140 1/1 GN-boxes/h, 70 EN-boxes/h

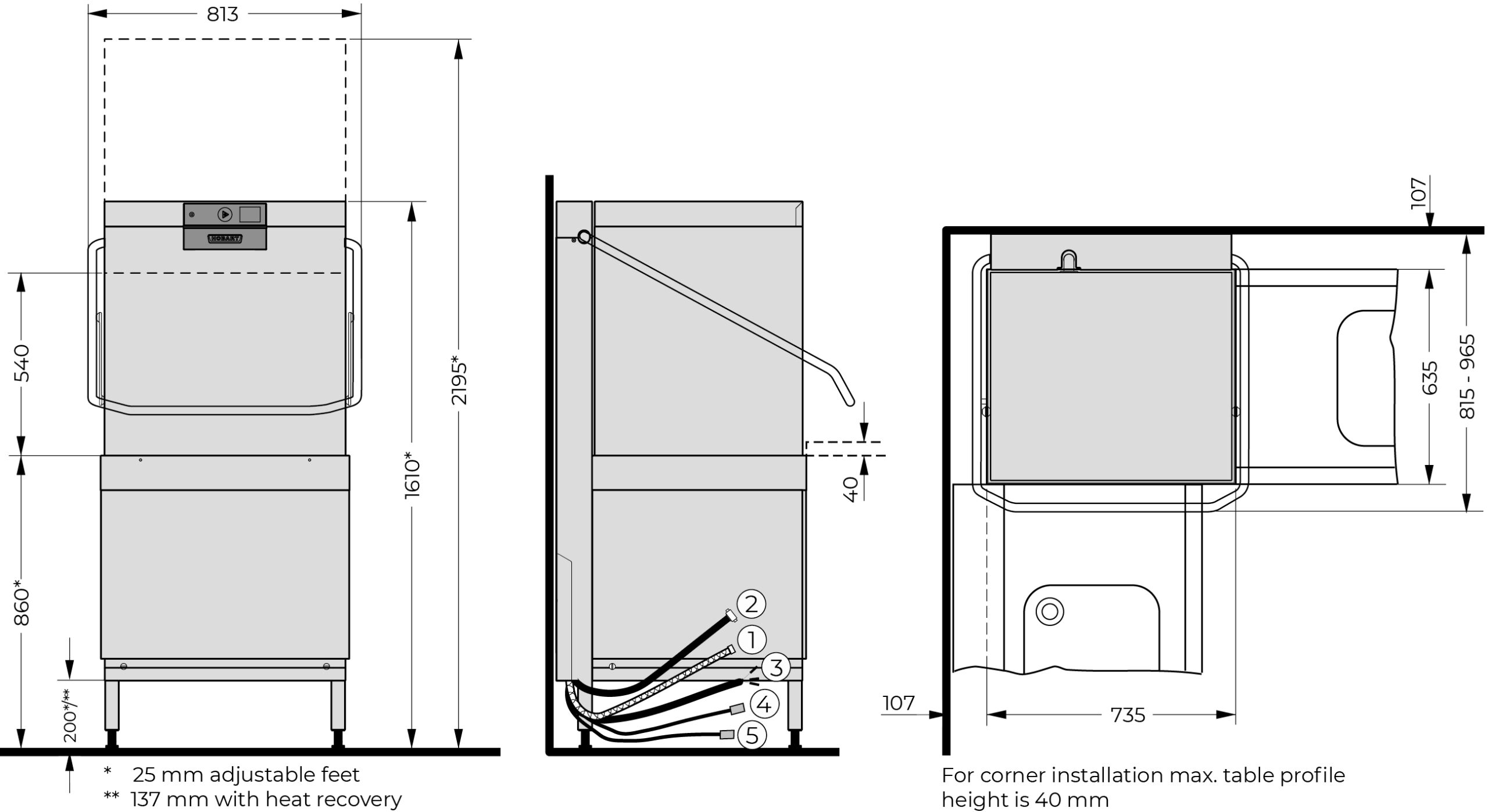

- Large chamber with 650 x 500 mm usable space
- Extra large loading height of 540 mm
- 4 wash cycles – 52, 75, 180 seconds & continuous (max. 20 mins)
- Hygiene programme: for removal of calcium carbonate and other deposits from wash chamber
- Multi-Setting: booster capacity may be reduced from 12.4 kW to 6.2 kW if connected with hot water
- Heat and noise insulated hood
- Strainer soil sensor
- Refill signal (detergent / rinse aid)
- Self-cleaning programme
- USB-interface for comfortable download of operational data
- Ready to install – completely equipped: fill / drain hose, electrical cable, detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
- Tank, frame, wash / rinse arms and panels are stainless steel 1,4301
- 1 plate rack P-18-12
- 1 tray rack T-06-09
- 1 cutlery rack C-01-07
Variants
| Order number | Description |
|---|---|
| AMXXL | Basic model 415 / 50 / 3NPE – 32 A |
| AMXXL-V | AMXXL with addition of VAPOSTOP – prevents steam escaping from the machine when the hood is opened |
| AMXXL-HL | AMXXL with AUTO HOOD LIFT – closes hood at the push of a button & opens automatically at the end of a cycle. Back panel is included |
| AMXXL-VHL | AMXXL with VAPOSTOP and AUTO HOOD LIFT |
| AMXXL-R | AMXXL with DRAIN HEAT RECOVERY – cold water connection |
| AMXXL-VR | AMXXL with VAPOSTOP and DRAIN HEAT RECOVERY – cold water connection |
