| Brand | Turbofan |
|---|---|
| Product Type | Oven Ranges |
| Model Number | E931M |

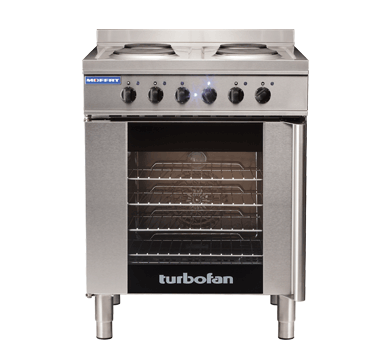

E931 Turbofan Range & Cooktop
The improved E931M light commercial range takes 4 GN Gastronorm 1/1 pan capacity with 80mm spacing. The 4 element cooktop offers two 2kW high speed front elements and two 1.5kW high speed rear elements all contained with the new full hygienic pressed stainless steel top. The convection oven is a versatile oven that can roast, grill, bake and is ideal for use in compact applications that require a oven / cooktop that is versatile.
- Additional information
- Dimensions
- Features
- Cooktop
- Oven
- Construction
- Controls
- Cleaning
- Electrical Requirements
- Installation Clearances
- Videos
- Downloads
Dimensions
External
- Width
- 675 mm (26.5748 in)
- Depth
- 627 mm (24.685 in)
- Height
- 955 mm (37.5984 in)
- Volume
- 0.54 m³
- Packed Weight
- 95 Kg
Internal
- Width
- 565 mm (22.2441 in)
- Depth
- 395 mm (15.5512 in)
- Height
- 425 mm (16.7323 in)
- Volume
- 0.09 m³
Features
- 4 x 1/1 GN pan capacity
- 80mm tray spacing
- 2 x 2kW high speed front hot plate elements
- 2 x 1.5kW high speed rear hot plate elements
- Low velocity circulation fan
- Mechanical thermostat 50-270C
- 60 minute timer with time-up buzzer
- Grill mode
Cooktop
- Two 2kW high speed front hot-plate elements
- Two 1.5kW high speed rear hot-plate elements
- Full hygienic pressed stainless steel top
- 6-heat setting element controls
- 1-phase 7kW connection
Oven
- 4 Gastronorm GN 1/1 pan capacity
- 80mm tray spacing
- Mechanical thermostat 50° – 270°C
- 60 minute timer with time-up buzzer
- Grill mode
- Single direction low-velocity fan
- 8kW heating in bake mode / 2kW grill elements
- Safe-Touch vented side hinged door (standard LHhinge). Optional RH hinge (field convertible)
- Stay-Cool door handle
- Vitreous enamel oven chamber
- Plug-in continuous oven door seal
- Halogen oven lamp
- 50mm dia. adjustable stainless steel legs
- 4 oven wire racks supplied
- 15A plug-in cordset fitted
- 100% recyclable packaging
Construction
- 304 stainless steel hygienic cooktop
- Vitreous enamel fully welded oven chamber
- Stainless steel front, sides and top exterior
- Enamelled steel oven fan baffle and oven vent
- Removable 4 position chrome plated wire side racks
- Oven grids chrome plated wire (4 supplied)
- Stainless steel frame side hinged door
- 5mm thick door outer glass
- 5mm thick low energy loss door inner glass
- Full stainless steel welded door handle
- Stainless steel control panel
- Aluminised coated steel base and rear panels
Controls
Oven
- Oven thermostat 50° – 270°C
- Oven grill setting on thermostat knob
- Power on indicator light
- Heating indicator light
- Mechanical 60 minute timer
- Time-up indicator light and buzzer
- Over-temperature safety cut-out
Cooktop
- 6-heat setting control each element
- Hotplate element ‘ON’ indicator lights
Cleaning
- Stainless steel hygienic top
- Stainless steel exterior sides and front
- Vitreous enamel oven chamber
- Fully removable chrome plated oven side racks
- Removable vitreous enamel oven fan baffle
- Easy clean door system with hinge out door inner glass (no
- tools required)
- Removable plug-in oven door seal (no tools required)
- Full stainless steel legs
Electrical Requirements
Oven
- 230-240V, 50Hz, 1P+N+E, 3.1kW, 12.9A
- 15A 3-pin cordset fitted
Cooktop
- 230-240V, 50Hz, 1P+N+E, 7.0kW, 29.2A
- Supply connection to unit required
Note: Oven and Cooktop require separate connection
Installation Clearances
- Rear 25mm
- LH Side 25mm
- RH Side 25mm
