Hobart ECOMAXPLUS H615 Dishwasher

Name: Hobart ECOMAXPLUS H615 Dishwasher
SKU: ECOMAXH615

For budget-oriented operators who seek a plus for comfort
and equipment. ecomax plus combines all the features of
an ecomax dishwasher and offers a plus for wash power,
energy efficiency, noise reduction and ease of use.

Price excludes GST

SKU: ECOMAXH615 Category: Large Commercial Equipment Tag: Quote Only

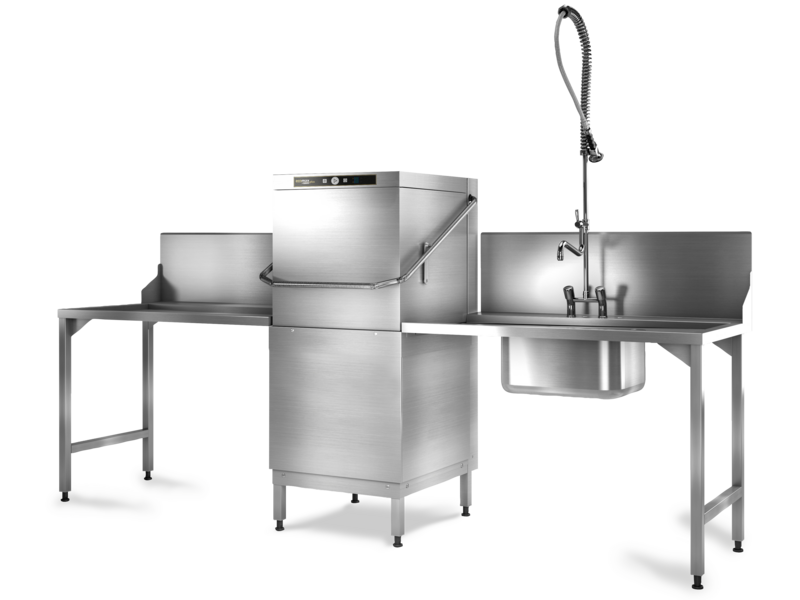

Hood-type dishwasher for straight through or corner operation
Nominal capacity up to 60 racks/h or 1,080 plates/h or 2,160 glasses/h
3 automatic cycles: 60 / 90 & 180 seconds
Ready to install – completely equipped: fill / drain hose, power cord (415 V), detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
1 plate rack P-18-12
1 universal rack B-00-07
1 plastic cutlery box

Brand	Hobart Food Equipment
Product Type	Hood Type Dishwasher

Features

Top mounted SINGLE BUTTON CONTROL – Easy-to-See, Easy-to-Use with status indication & 3 cycles – 60, 90 & 180 seconds.
Suitable for all dish & glass washing applications. Usable chamber height of 440 mm. Able to wash 1/1 GN pans when using optional open ended tray racks
Low 2.2 litres per cycle rinse volume – dish / glasswasher with rinse pump to guarantee rinse volume and pressure
Fully enclosed 4 sided hood design – avoiding loss of energy / steam
Optimum hygienic – deep drawn tank with coved corners (no welds) and SELF-CLEANING CYCLE
Polypropylene wash and stainless steel rinse arm with patented WIDE ANGLE FAN nozzle to maximise wash and rinse performance
Wash pump inlet strainer to ensure machine reliability
Includes chemical dispensers, fill hose, power lead and pump-out drain for quick and easy installation
Includes 1 x plate rack & 1 x cutlery holder
Watermark approved to WMTS-101:2018, Cert. WMKT21944

Specifications

Wash Tank Temperature	55 – 65°C
Rinse Water Temperature	Minimum 82°C
Low temp cut-out (thermostop) activated	Yes
Cycle Times*	60 / 90 / 180 seconds
Water Consumption	2.2 litres / rack
Tank Capacity	21 litres
Tank Heating	2.5 kW
Power Supply	415 / 50 / 3NPE
Booster Loading – Standard	6.2 kW
Total Loading – Standard	7.1 kW
Pump capacity	0.7 kW
Loading Height	440 mm
Bench to bench – internal dimension	628 mm
