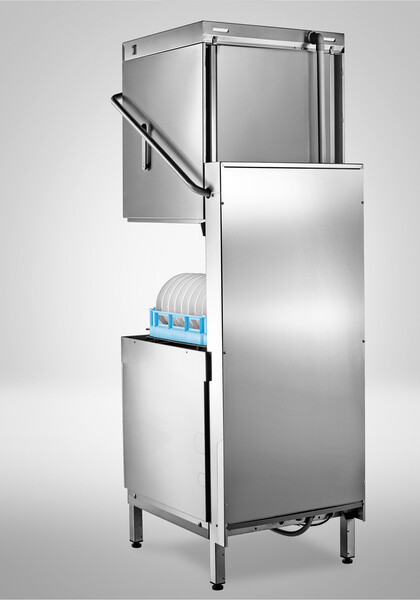

- Hood-type dishwasher for straight through or corner operation
- Nominal capacity up to 60 racks/h or 1,080 plates/h or 2,160 glasses/h
- 4 wash cycles – 60, 90, 180 seconds & continuous (max. 20 mins)
- Hygiene programme: for removal of calcium carbonate and other deposits from wash chamber
- Heat and noise insulated hood
- Strainer soil sensor
- Refill signal (detergent / rinse aid)
- Self-cleaning programme
- USB-interface for comfortable download of operational data
- Ready to install – completely equipped: fill / drain hose, electrical cable, detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
- Tank, frame, wash / rinse arms and panels are stainless steel 1.4301
- 1 plate rack P-18-12
- 1 universal flat rack B-00-07
- 1 plastic cutlery rack CB8
| Brand | Hobart Food Equipment |
|---|---|
| Product Type | Pass Through |
Features
- VISIOTRONIC-TOUCH control: colour touchscreen (displays text and graphic) in conjunction with single-button control and remaining cycle time indication
- SMARTCONNECT app: controlling your warewash operation with smart technology: status and messages, usage and operating costs, hygiene, service and consumables order
- SENSO-ACTIVE resource management: constantly measures the quality of the wash water and keeps the amount of rinsing needed in each rinse cycle to the minimum in order to guarantee a fully hygienic wash result
- Exhaust energy storage: the fully enclosed 4-sided hood keeps steam and energy inside the system: energy saving up to 3 kW, less humidity in the kitchen area and better hygienic conditions
- CLIP-IN wash and rinse arms: wash and rinse arms can be removed with one hand and without any tools
- USB-interface: download of operational data via USB
- GENIUS-X² fine filter system: advanced filter system with pre-wash function reduces detergent consumption up to 35%
- VAPOSTOP (optional): prevents vapour escaping from the machine when the hood is opened. Interlocked strainer: prevents operation without tank strainer
- Interlocked strainer: prevents operation without tank strainer
- EASY-CLEAN concept: blue markings in the machine help the operator to identify the components which require cleaning
- Watermark approved to WMTS-101:2018, Cert. WMKT21944
Specifications
Technical data
| Cycle Times* | 4 wash cycles – 60, 90, 180 seconds & Continuous (max. 20mins) |
| Water Consumption | 2 l/rack |
| Tank Capacity | 23 l |
| Tank Heating | 2.5 kW |
| Power Supply | 415 / 50 / 3NPE |
| Booster Loading – Standard | 6.2 kW |
| Total Loading – Standard | 7.1 kW l 3 x 15 A |
| Wash Pump | 0.7 kW |
| Rack Size | 500 x 500 mm |
| Loading Height | 440 mm |
| Noise Level | 66 dB (A) |
| Weight (gross / net) | 124 / 104 kg |
